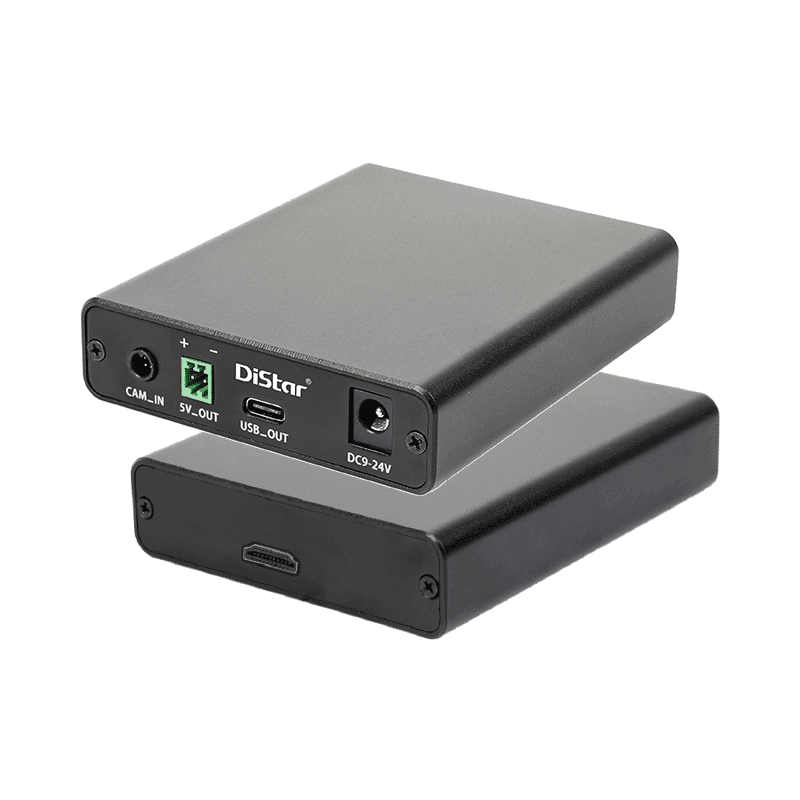

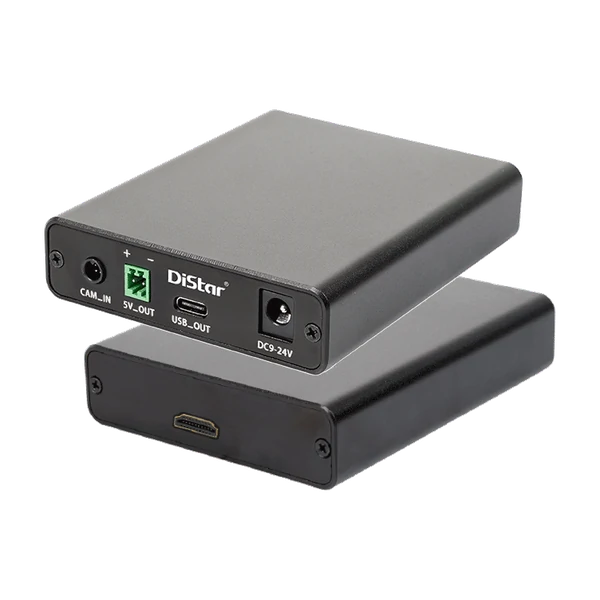

DST-BA/BC/BU/BH main unit views showing USB and HDMI connectors
TruckMiningThermal Imaging

DST-BA/BC/BU/BH

AI Thermal Imaging Main Unit for Vehicles

#ThermalMainUnit#AHD#HDMI#AIRecognition

The DST-BA/BC/BU/BH main unit processes video from a connected thermal camera and sends it to a compatible onboard display. Add AI pedestrian and vehicle detection to your vehicle night vision system, with AHD, HDMI or USB output options to match the display’s input.

Click or tap the video to pause or play.

Product Features

A truck dashboard screen shows a thermal view of the road at night.

Thermal Imaging for Low-Visibility Driving

Thermal video on a compatible display helps drivers see the road ahead and spot people and vehicles at night and in other low-visibility conditions.

A vehicle display highlights a pedestrian and a car in thermal video beside an inset of the main unit.

AI Detection of Pedestrians and Vehicles

The Linux-based main unit uses 3 TOPS of AI processing to detect pedestrians and vehicles in thermal video from the connected camera.

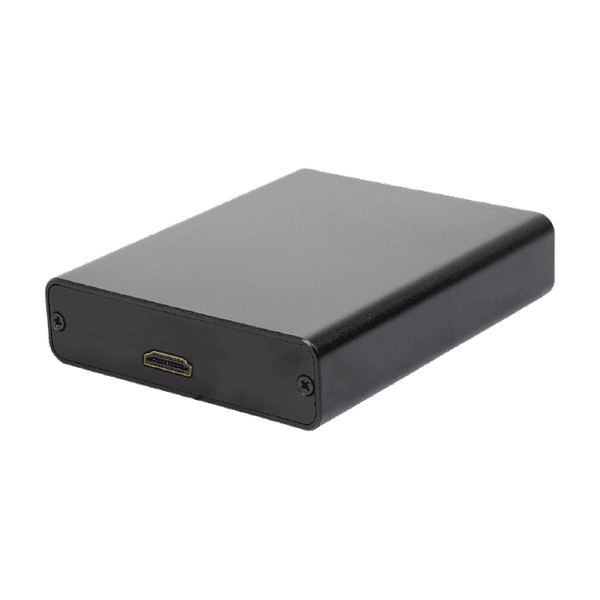

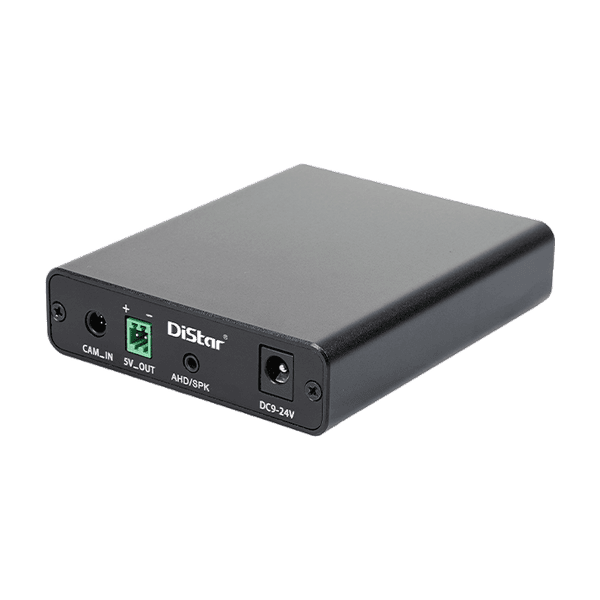

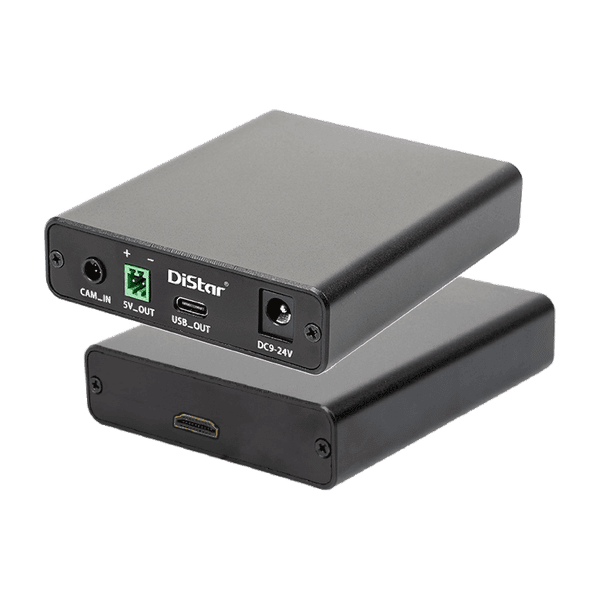

Side-by-side views of main unit connectors illustrate the AHD, USB and HDMI output options.

AHD, HDMI and USB Video Output Options

Check your display’s video input, then choose a main unit configuration with the matching AHD, HDMI or USB output.

A thermal camera and main unit beside a resolution table and field-of-view diagram.

Three Thermal Camera Resolution Options

Choose a thermal camera resolution of 256 × 192, 384 × 288 or 640 × 512 based on the level of image detail your project requires.

A dashboard screen shows thermal video, with an inset of the camera and USB main unit for the Android setup.

Android Display and M2 App Integration

With the Android-compatible USB configuration, use the M2 app to view thermal video on a compatible Android device and adjust system settings and warning options.

A dashboard thermal warning is shown alongside symbols for a vehicle display, an external monitor and a buzzer.

Audible Alert Options

The system can deliver audible alerts through the vehicle’s existing display, an external monitor or a separate alarm device, depending on the selected equipment and configuration.

The compact main unit is shown on a truck dashboard with power, size and operating temperature callouts.

Compact Main Unit for Vehicle Installation

Each main unit measures 98 × 81 × 22 mm, accepts 9–24 V DC input and operates from −30°C to 70°C. Use these specifications to check mounting space, vehicle power and the expected operating temperature.
