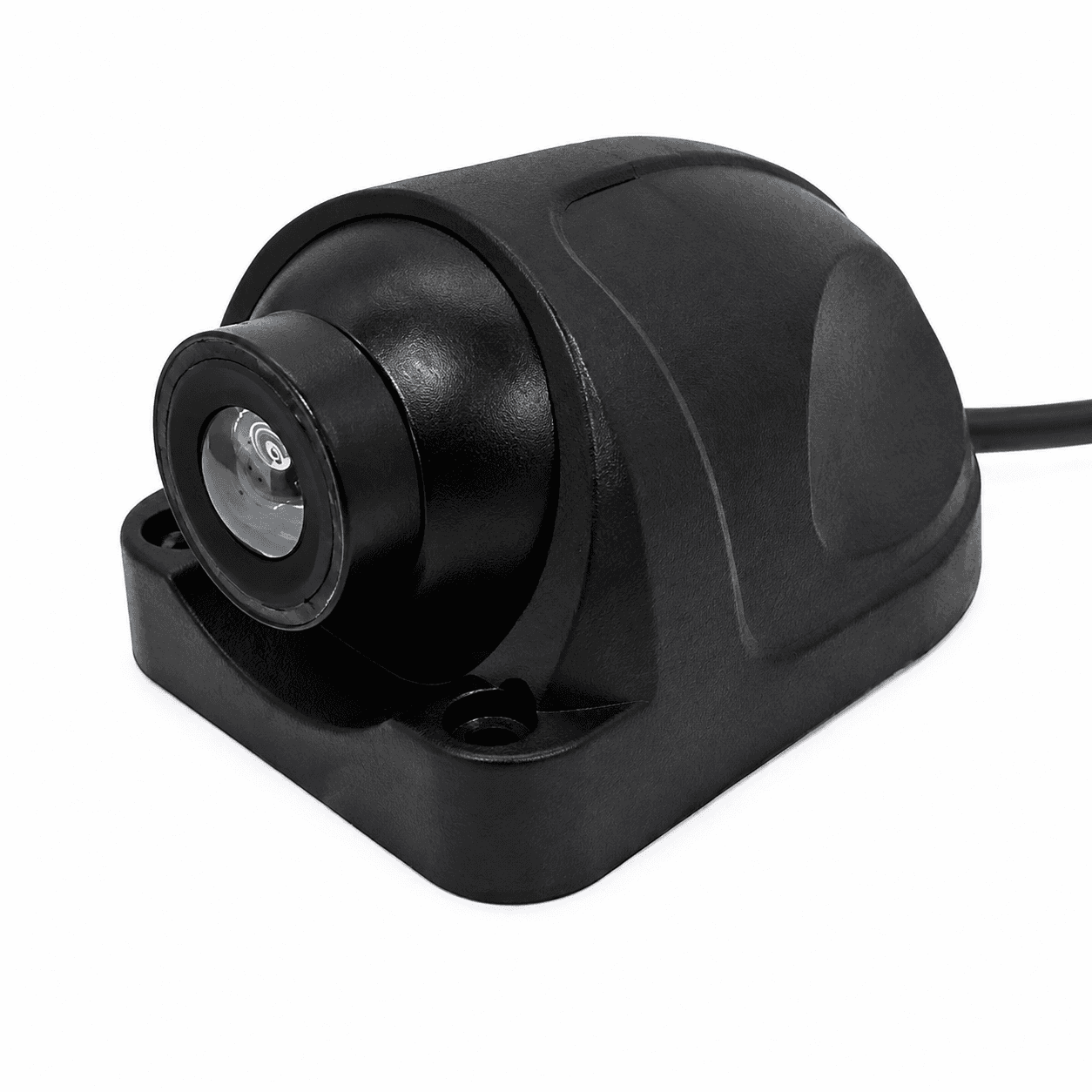

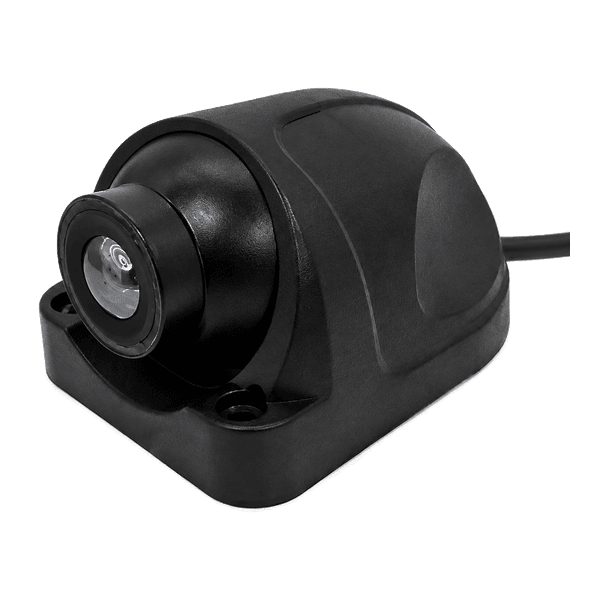

DST-C2-1.5 thermal camera with a rounded housing and mounting base
TruckMiningThermal Imaging

DST-C2

Vehicle Thermal Imaging Camera for Low-Light Conditions

#ThermalCamera#256x192#IP67#CVBS

The DST-C2 series gives commercial vehicle operators a thermal view of the work area in darkness and low light. Choose from three fields of view and match the camera’s video output to a compatible onboard display or video system.

Click or tap the video to pause or play.

Product Features

DST-C2 camera beside a monitor with a white-hot view of a person and parked cars

See More of the Work Area After Dark

When headlights leave parts of the work area in shadow, the DST-C2 shows those areas in a 256 × 192 White Hot thermal image. Warmer objects appear lighter, and detail enhancement helps people and vehicles stand out against the background.

Three DST-C2 camera housings, an illustrated field-of-view comparison and a model specifications table

Choose the View That Fits the Job

Choose the 1.5 mm lens (120° × 86°) for a wide view close to the vehicle. Use the 4 mm lens (45° × 33°) to monitor a defined area, such as a lane or work zone. Choose the 9.1 mm lens (18° × 13°) for a narrow view of a smaller area farther away. Fields of view are given as horizontal × vertical.

Nighttime dashboard with a thermal display, a DST-C2 camera inset and CVBS (PAL) and USB labels

Match the Camera Output to Your Equipment

Choose the camera’s video output based on the inputs your onboard equipment supports. Use CVBS (PAL) with a monitor that accepts PAL analog video, or choose USB if your equipment supports video input from the camera over USB.

Camera in a snow-covered truck grille with defrosting and IP67 housing callouts

Exterior Mounting and Window Defrosting

All three models have an IP67-rated aluminum alloy housing for exterior mounting. The DST-C2-4 and DST-C2-9.1 have window defrosting to help keep frost from obscuring the thermal view. The wide-angle DST-C2-1.5 comes without defrosting.

Nighttime truck dashboard with a thermal display, three camera housings and a DC 9–24 V label

Power the Camera from a DC 9–24 V Supply

The DST-C2 camera accepts DC 9–24 V input. Before installation, check that the supply available at the planned mounting location is within this range.
