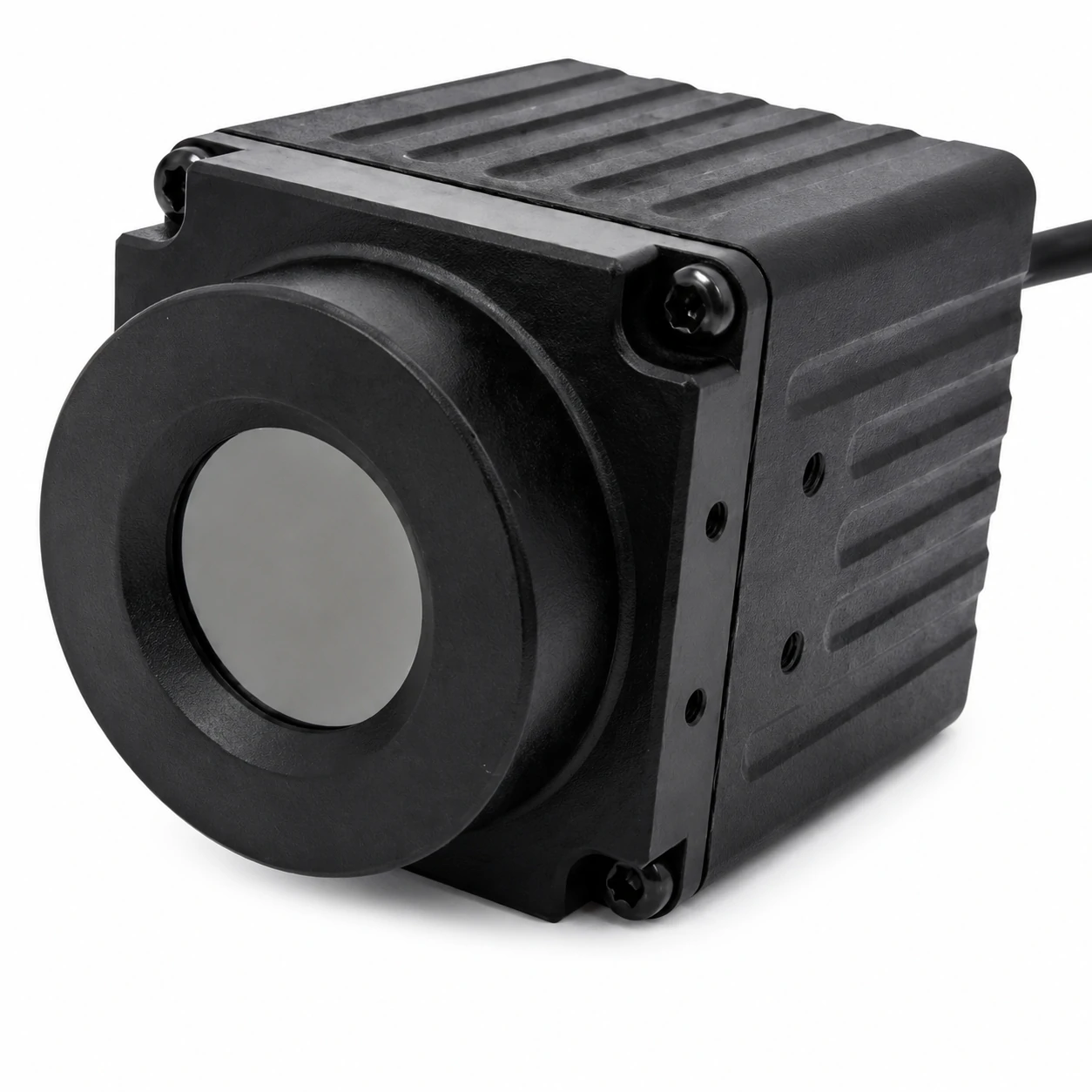

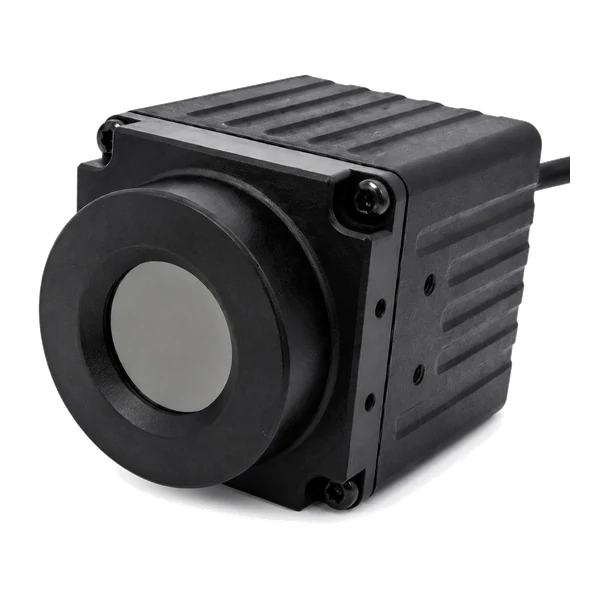

DST-C3 thermal camera with a round front window and a ribbed black housing
TruckMiningThermal Imaging

DST-C3

DST-C3 Vehicle Thermal Imaging Camera

#ThermalCamera#384x288#IP67#CVBS

The DST-C3-9.1 is a standalone thermal imaging camera for trucks and other heavy-duty vehicles. It gives drivers a thermal view of the road ahead at night or in poorly lit areas. Connect it to a compatible onboard display or video system to view the thermal feed.

Click or tap the video to pause or play.

Product Features

Nighttime truck cab with a thermal road view on the dashboard display and an inset of the DST-C3 camera

See the Road in Thermal Detail After Dark

The 384 × 288 thermal image uses White Hot mode, so warmer areas appear brighter. Detail enhancement helps drivers make out more of the scene where headlights leave parts of the road dimly lit.

Nighttime highway viewed from a truck cab with 29° horizontal and 22° vertical field-of-view markings

Frame the Road Ahead

The 9.1 mm lens gives the DST-C3-9.1 a 29° × 22° field of view (horizontal × vertical) to frame a specific section of the road ahead. Check the coverage from your planned mounting position and angle.

Truck dashboard showing a thermal road view beside a diagram labeled CVBS (PAL) and USB

Match the Video Output to Your Onboard Equipment

Video output options are CVBS (PAL) and USB. For CVBS, check that your display or video system accepts PAL analog video. For USB, confirm that your onboard equipment can receive video from the camera over USB.

Camera mounted in a frost-covered truck grille

IP67 Housing and Window Defrosting

The IP67-rated aluminum alloy housing helps protect the camera from dust and water ingress when mounted outside the vehicle. Window defrosting helps keep frost from obscuring the thermal view.

Thermal camera beside a truck with a DC 9–24 V label

Power the Camera from a DC 9–24 V Supply

The DST-C3 accepts DC 9–24 V input. Before installation, check that the DC voltage available at the planned mounting point is within this range.
