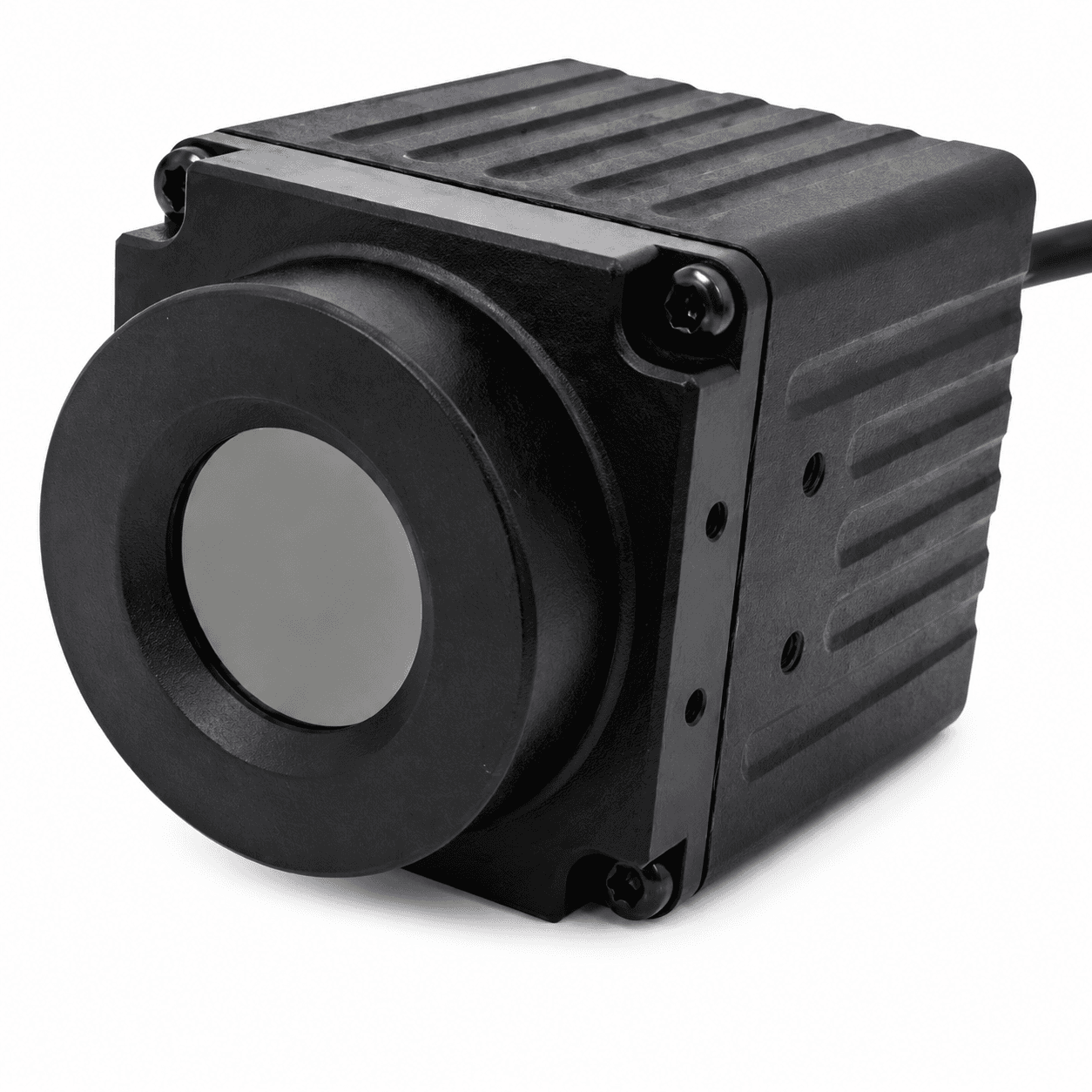

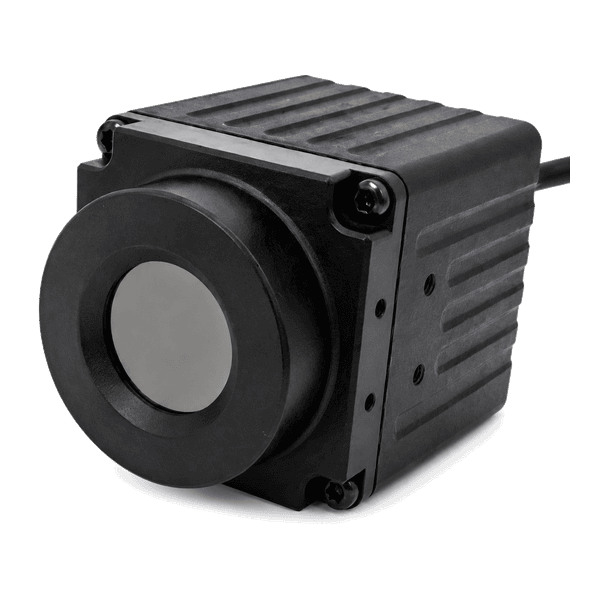

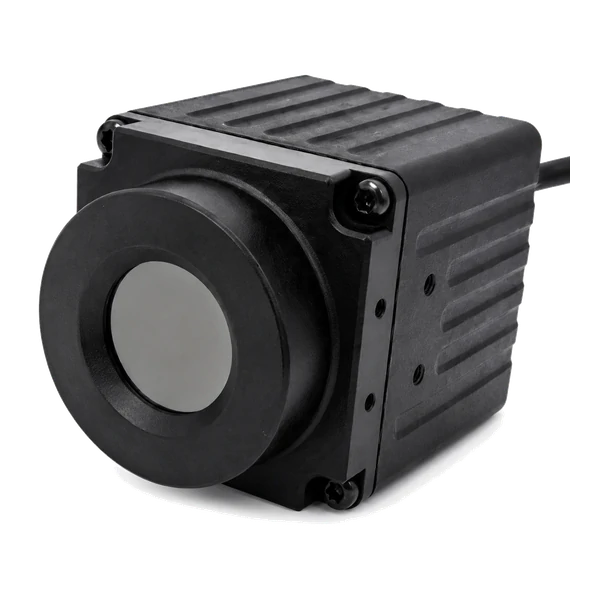

DST-C6 thermal camera with a round front window and a ribbed black housing
TruckMiningThermal Imaging

DST-C6

DST-C6 Vehicle Thermal Imaging Camera

#ThermalCamera#640x512#IP67#CVBS

The DST-C6 is a standalone thermal imaging camera for trucks and other heavy-duty vehicles. Its 640 × 512 detector provides a thermal view for nighttime observation. Choose a 9.1 mm or 13 mm lens to suit the area you need to see, and connect the camera to compatible onboard equipment using CVBS (PAL) or USB video output.

Click or tap the video to pause or play.

Product Features

Nighttime truck dashboard showing a thermal street view beside a DST-C6 camera inset

See More Thermal Detail After Dark

The DST-C6’s 640 × 512 thermal detector reveals heat patterns in darkness. White Hot imaging displays warmer objects in brighter tones, while detail enhancement helps make the scene easier to interpret.

DST-C6 lens comparison showing 48° × 39° and 34° × 27° fields of view beside a truck

Choose the View That Fits Your Vehicle

Choose the DST-C6-9.1 with a 9.1 mm lens for a wider 48° × 39° view, or the DST-C6-13 with a 13 mm lens for a narrower 34° × 27° view (horizontal × vertical). The two lens options let you choose the coverage that fits your vehicle and observation needs.

Truck dashboard with a thermal view and a camera connection diagram labeled CVBS (PAL) and USB

Connect Thermal Video to Your Onboard Equipment

Video output options are CVBS (PAL) and USB. For CVBS, check that your onboard display or video system accepts PAL analog video. For USB, confirm that your integration equipment can receive video from the camera over USB.

DST-C6 camera on a snowy roadside with IP67 housing and window defrost labels

Built for Outdoor Installation

The DST-C6’s IP67-rated aluminum alloy enclosure helps protect the camera from dust and water ingress when mounted outdoors. Both the 9.1 mm and 13 mm models support window defrosting to help keep frost from obscuring the camera’s view.

Truck cab and DST-C6 camera inset with a DC 9–24 V power input label

Power the Camera from a DC 9–24 V Supply

The DST-C6 operates from a DC 9–24 V supply. Check the available power at the planned installation point against this input range when integrating the camera into your vehicle.
