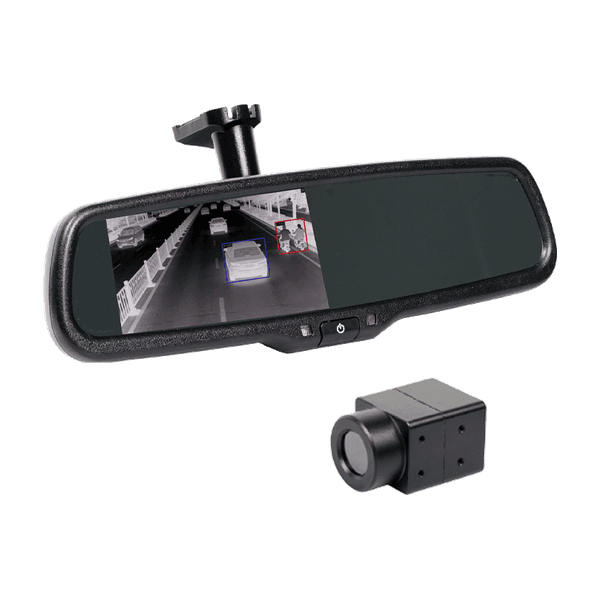

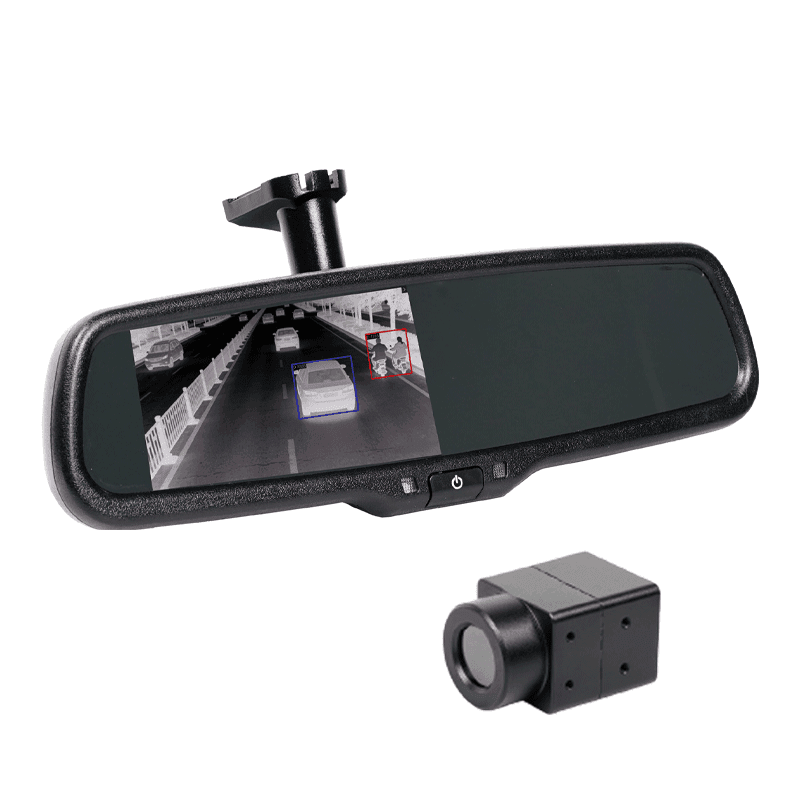

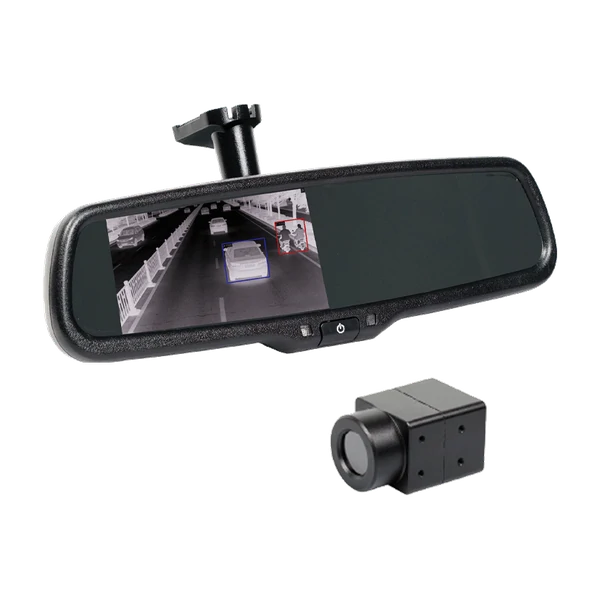

Rearview mirror with a thermal road image on its built-in display, shown with a separate camera.
TruckMiningThermal Imaging

DST-TMR430AI

Thermal Imaging Rearview Mirror for Night Driving

#ThermalMirror#4.3Inch#AIRecognition#IP67

The DST-TMR430AI provides thermal night vision, AI recognition of pedestrians and vehicles, and audible pedestrian alerts. The mirror uses a vehicle-specific mounting bracket, requires 9–18 V DC input, and draws less than 7 W.

Click or tap the video to pause or play.

Product Features

A rearview mirror mounted above the dashboard shows a pedestrian in a grayscale thermal image.

Thermal Imaging in the Rearview Mirror

The mirror’s built-in 4.3-inch IPS screen (800 × 480) shows the forward thermal feed without a separate dashboard display. Screen brightness adjusts automatically at night, and the driver can turn night vision on or off manually.

At night, the mirror displays a grayscale thermal view of the street ahead.

Thermal Visibility for Night Driving

The external, forward-facing thermal camera uses differences in heat to show the road ahead. Its thermal view helps drivers see people, vehicles, and their surroundings at night and in low light.

Colored boxes mark a pedestrian and a vehicle in the mirror’s thermal road view.

AI Pedestrian and Vehicle Recognition

Built-in AI recognizes pedestrians and vehicles in the forward thermal feed. The system runs on Linux and uses a 3 TOPS neural processing unit (NPU) for onboard recognition.

A pedestrian warning appears on the mirror display, with red sound waves drawn beside the mirror.

Built-in Pedestrian Alert Speaker

The mirror’s built-in speaker sounds an alert when a detected pedestrian meets the system’s alert conditions.

The mirror shows a rear parking view with colored guide lines, with separate thermal and reversing views pictured below.

AHD Input for an Optional Reversing Camera

Connect a compatible rear-facing AHD camera and the mirror display can automatically switch to the rear view when the driver shifts into reverse. The reversing camera is optional and sold separately. The forward-facing thermal camera provides the view for night driving.

Rearview mirror and thermal camera with a field-of-view diagram and resolution comparison table.

Three Thermal Camera Resolution Options

Choose a forward thermal camera with 256 × 192, 384 × 288, or 640 × 512 resolution. Camera appearance and weight vary by option.

A thermal camera mounted on the front grille of a vehicle covered in snow and ice.

IP67 Thermal Cameras with Automatic Defrosting

All three thermal camera options have IP67-rated aluminum alloy housings. Each camera supports automatic defrosting to help keep its window clear of frost.
