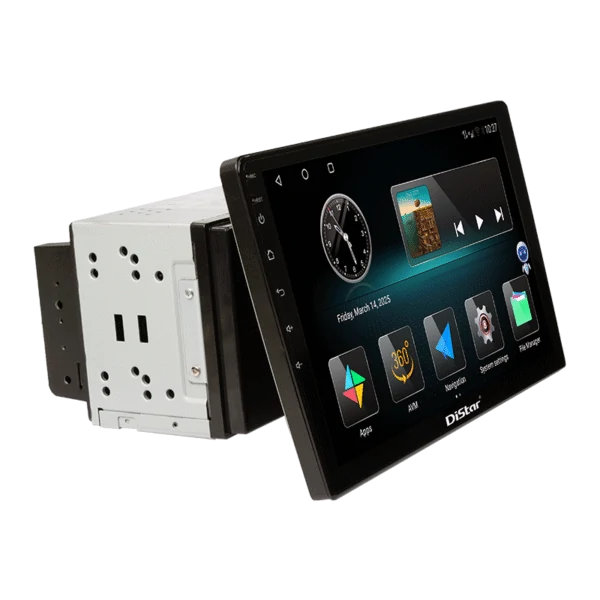

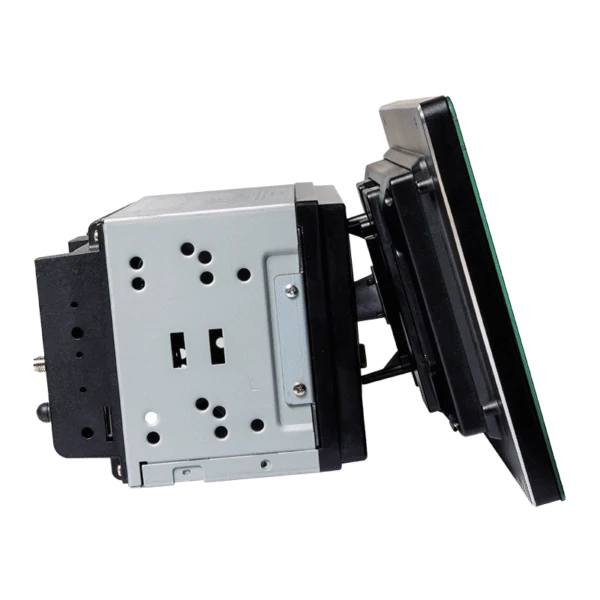

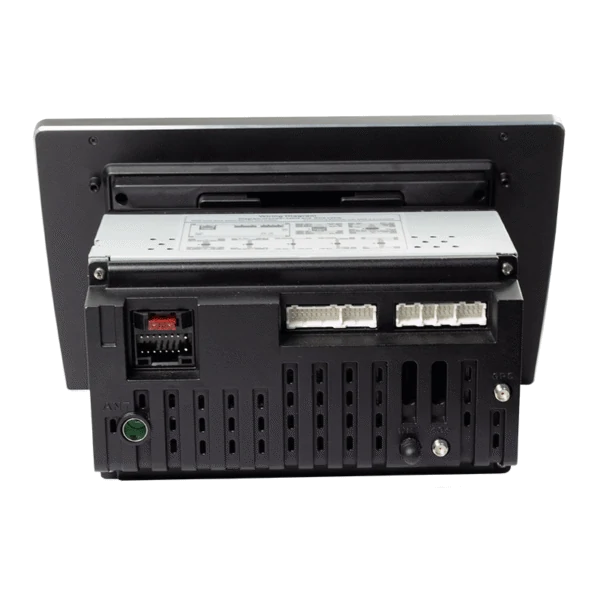

DST-X1Q8-24 10.1-inch Android Fleet Smart Terminal product view 1
Bus & CoachTruckTerminal

DST-X1Q8-24

All-in-One Fleet Intelligence for a Safer, Smarter Cabin.

#SmartTerminal#ADAS#DMS#360AVM

The DST-X1Q8-24 is a 10.1-inch Android fleet smart terminal designed to combine safety, fleet control and infotainment functions in one commercial vehicle device. It brings Android OS, GPS, MDVR, ADAS, DMS, 4-channel 360 AVM support and multi-channel AHD camera input into a single cabin terminal. This integrated design brings vehicle video, connectivity and multimedia together at the dashboard, helping simplify installation and wiring for vehicle projects.

Click or tap the video to pause or play.

Product Features

Illustrations show example applications; actual configurations and interfaces may vary.

Illustrated coach system with the DST-X1Q8-24 terminal, cameras and connected equipment

All-in-One Vehicle Terminal

The DST-X1Q8-24 combines an Android display with GPS, MDVR, camera support and multimedia functions in one onboard terminal.

Illustrated truck dashboard with a touchscreen terminal within the driver’s reach

10.1-Inch Capacitive Touchscreen

The 10.1-inch capacitive touchscreen provides a central display for the Android-based terminal.

Stand-alone and 2 DIN body designs are available for different dashboard integration requirements.

Illustrated coach surrounded by sensor zones and highlighted road users

Up to 8 AHD Camera Inputs

Connect compatible cameras to the multi-channel AHD video inputs for views inside and around the vehicle.

An RN6864M AHD processor supports up to eight camera inputs, with optional CVBS/HDMI input paths. Camera and recording configurations depend on the project.

Illustrated driver monitoring alongside a road view with vehicle detection overlays

ADAS and Driver Monitoring Support

The terminal supports vehicle safety applications with compatible ADAS and DMS cameras.

Available functions depend on the cameras, software and system configuration.

Illustrated bus surround and rear views with parking guides on a display

360° Surround View and Reverse Camera Support

Four-channel 360 AVM and reverse camera support bring vehicle surroundings into the in-cabin viewing system.

The available views depend on the cameras and integration setup.

Fleet dashboard showing a vehicle map, driver details and four vehicle video views

4G Connectivity and GPS

GPS and 4G LTE Cat6 support positioning and cellular connectivity for connected vehicle applications.

The terminal supports 4G connectivity through an external SIM card, with WCDMA, TDD-LTE and FDD-LTE network support. SIM configuration, bands and remote services vary by market and project.

Illustrated bus cockpit with CAN Bus data, serial device icons and connection concepts

CAN Bus and Serial Interfaces

CAN Bus, two RS-232 ports and one RS-485 port provide interfaces for vehicle integration.

Vehicle protocols and external device compatibility depend on the project.

Illustrated SDM450 processor on a stylized circuit board

Android Processing Platform

The Android terminal uses a Qualcomm Snapdragon SDM450 platform with an octa-core 64-bit Cortex-A53 CPU.

Processor and software versions depend on the supplied configuration.

Illustrated coach dashboard and smartphone with CarPlay and Android Auto icons

Smartphone Connectivity and Multimedia

EasyLink, CarPlay, Android Auto, Bluetooth calling and music bring phone links and multimedia to the cabin.

The terminal also supports 1080p video output and optional 4.1-channel audio output. Available connections depend on the project.

Illustrated bus dashboard with a vehicle power protection diagram

12V and 24V Vehicle Power

The terminal is designed for 12V and 24V vehicle power, with over-voltage and under-voltage protection.
